1. A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
2. Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
3. Areas with high energy costs
4. Hazardous:division 1 & 2,or 20,21,&22.
5. Explosive gas atmosphere:class IIA, IIB, IIC or inflammable dust environment.
6. Indoor or outdoor (IP65,IP66)
7. Temperature class:T1~T4/T5/T6
8. Widely using in the fields of oil,Chemistry industry,spaceflight,are-industry and so on.
Housing: Die-casting aluminum
Exterior: Stainless steel
DETAILED DATASHEET
| Outline |
Code |
Description |
Outline |
Code |
Description |
| Horzontel cover |
A |
1 entry in horizon |
Hung cover |
F |
1 entry in horizon |
| Horzontel cover |
B |
2 direct entries in horizon |
Hung cover |
G |
2 direct entries in horizon |
| Horzontel cover |
C |
3 entries in horizon |
Hung cover |
H |
3 entries in horizon |
| Horzontel cover |
D |
4 entries in horizon |
Hung cover |
I |
4 entries in horizon |
| Horzontel cover |
E |
2 perpendicular entries in horizon |
Hung cover |
J |
2 perpendicular entries in horizon |

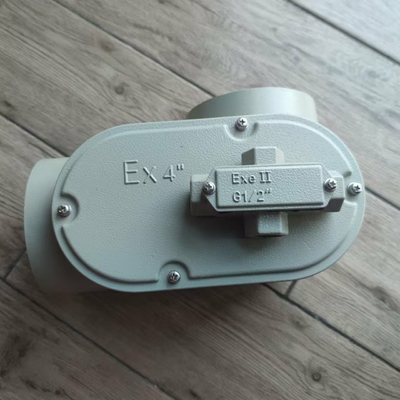

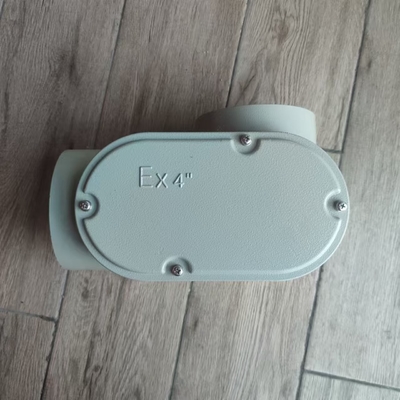

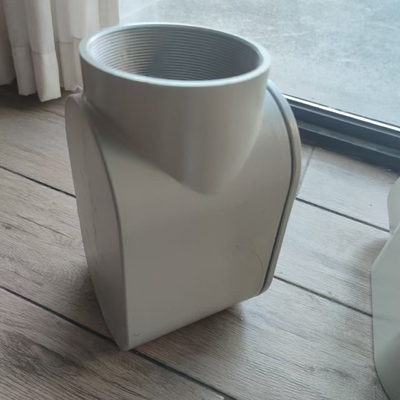

Features of Die-casting aluminum Explosion Proof Junction Box IP65 2/3 entries in horizon
1. Shell made of high strength aluminium alloy casting off the surface after blast cleaning by high voltage electrostatic spray or Carbon Steel or Stainless steel.Shell compact structure, high density material strength,Explosion-proof performance, the surface of plastic powder adhesion ability with good anti-corrosion, the surface smooth,elegant appearance.
2. Inlet or outlet has many kinds of specifications, 1/2/3/4 entries in horizon
3. Thread specification can be specially designed.
4. Can connet explosion-proof flexible tube Steel pipe,cable,wiring etc.
5. Explosion-proof junction boxes have a strong waterproof, dustproof,flameproof, acid and alkali resistant, grease resistant.
Explosion-proof junction boxes add an explosion-proof function on the based of normal junction boxes.It is with super-strong sealing performance to ensure the safe use of cable wiring.
Explosion-proof waterproof IP66 explosion proof junction box ip68
6. In addition to junction boxes, we also have explosion-proof threading box, explosion-proof sealed box, explosion-proof plug, explosion-proof connector, rubber explosion-proof coiled tube, stainless steel explosion-proof coiled tube, explosion-proof switch, explosion-proof socket and other accessories
7. We are more professional and we have passed the ATEX IECEx ROHS CE and other relevant international agency certifications.
8. It has strict process requirements when producing the Explosion-proof products. Multiple inspections and adjustments,
unqualified products in the inspection process, all scrapped, and no longer used to ensure the safety of product use, a certain high quality and process requirements Audited products.
