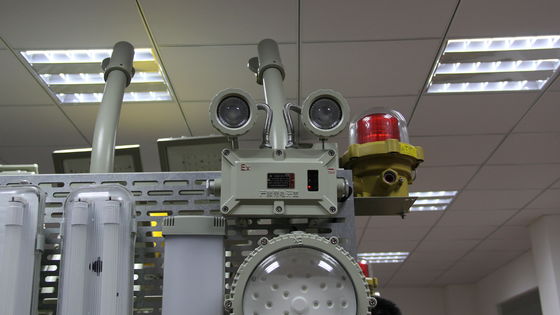

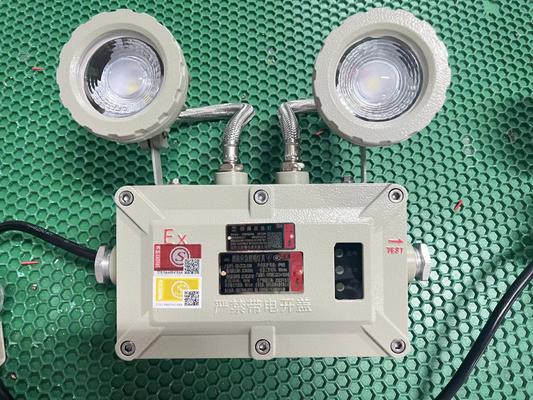

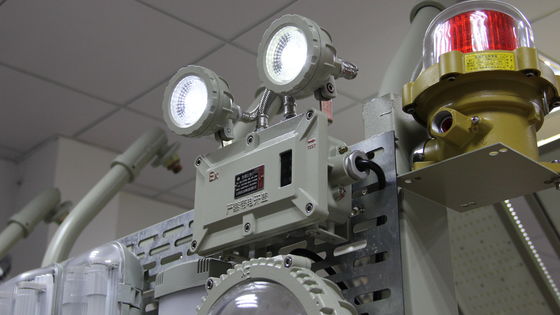

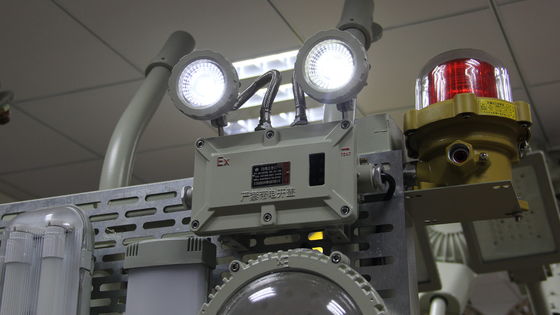

Factory Direct Zone 1, 2 & Zone 21, 22 Explosion Proof Light Explosion Proof Emergency Light 24 Hrs Charging Time

Сертификация
КИТАЙ crown extra lighting co. ltd Сертификаты
КИТАЙ crown extra lighting co. ltd Сертификаты
Оставьте нам сообщение

Factory Direct Zone 1, 2 & Zone 21, 22 Explosion Proof Light Explosion Proof Emergency Light 24 Hrs Charging Time

Factory Direct Zone 1, 2 & Zone 21, 22 Explosion Proof Light Explosion Proof Emergency Light 24 Hrs Charging Time
Factory Direct Zone 1, 2 & Zone 21, 22 Explosion Proof Light Explosion Proof Emergency Light 24 Hrs Charging Time Factory Direct Zone 1, 2 & Zone 21, 22 Explosion Proof Light Explosion Proof Emergency Light 24 Hrs Charging Time Factory Direct Zone 1, 2 & Zone 21, 22 Explosion Proof Light Explosion Proof Emergency Light 24 Hrs Charging Time Factory Direct Zone 1, 2 & Zone 21, 22 Explosion Proof Light Explosion Proof Emergency Light 24 Hrs Charging Time

Большие изображения :  Factory Direct Zone 1, 2 & Zone 21, 22 Explosion Proof Light Explosion Proof Emergency Light 24 Hrs Charging Time

Подробная информация о продукте:
Место происхождения: Цзянсу, Китай
Фирменное наименование: Crown Extra
Сертификация: ATEX,CE,ROHS,CNEX,ISO9001
Номер модели: BCJ
Оплата и доставка Условия:
Количество мин заказа: 1 шт
Цена: USD50-60 per pc
Упаковывая детали: Картон 、 Деревянная коробка 、 поддон
Время доставки: 15 рабочих дней
Условия оплаты: T/T.
Поставка способности: 50000pcs/месяц

Factory Direct Zone 1, 2 & Zone 21, 22 Explosion Proof Light Explosion Proof Emergency Light 24 Hrs Charging Time

описание
Бренд: Корона дополнительно Название продукта: Взрывобезопасный аварийный фонарь /BCJ
Жилье: Алюминий-лист Крик: РА: ≥70
Эффективность: 100 фунтов/w Проверенный: CNEX, EX, IP66, IEC, IECEX
СКИт: 5500-6500 Монтаж: Потолок, стена.
Напряжение: 220VAC 50 Гц, 24/36 В постоянного тока

Factory direct Zone 1, 2 & Zone 21, 22 explosion-proof light explosion proof emergency light 24 hrs charging time



BCJ Series



Features:

1. Aluminium alloy for better heat dissipation
2. Superior gasketing seals between the mounting module, housing, and optical assembly for optimum performance in wet and corrosive environments
3. Multi-mounting arrangements to suit any lighting layout
4. Saves in energy, maintenance and installation costs
5. Instant, bright illumination Instant, bright illumination




Applications


A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations




Standard Materials
Housing:
Die-casting aluminum
Exterior: Stainless steel
Globe:
Tempered glass
Gasket:
Silicon rubber




Certifications
ATEX
CNEX
CE
RoHS
ISO9001



Electrical Data
Ex Marking
Ex e IIC T6/ Ex tD A21 T80
Classification
Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D
Application
Zone 1, 2 & Zone 21, 22
IP Degree IP66
Light source
LED 3W
Input Voltage
220VAC, 50/60 Hz/24VDC/24VAC/36VDC
Light efficiency
100-110lm/w
Work time
>120 min
Charging time
24 hrs
Mounting Styles Pendant; Ceiling; Chain; Embedded; Wall; Stanchion


Factory Direct Zone 1, 2 & Zone 21, 22 Explosion Proof Light Explosion Proof Emergency Light 24 Hrs Charging Time 0




Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.



Factory Direct Zone 1, 2 & Zone 21, 22 Explosion Proof Light Explosion Proof Emergency Light 24 Hrs Charging Time 1Factory Direct Zone 1, 2 & Zone 21, 22 Explosion Proof Light Explosion Proof Emergency Light 24 Hrs Charging Time 2
