Aluminum 220VAC 100lm/w Explosion Proof Emergency Lamp Exit Signs 3w With Atex Exit Sign Light

Сертификация
КИТАЙ crown extra lighting co. ltd Сертификаты
КИТАЙ crown extra lighting co. ltd Сертификаты
Оставьте нам сообщение

Aluminum 220VAC 100lm/w Explosion Proof Emergency Lamp Exit Signs 3w With Atex Exit Sign Light

Aluminum 220VAC 100lm/w Explosion Proof Emergency Lamp Exit Signs 3w With Atex Exit Sign Light
Aluminum 220VAC 100lm/w Explosion Proof Emergency Lamp Exit Signs 3w With Atex Exit Sign Light Aluminum 220VAC 100lm/w Explosion Proof Emergency Lamp Exit Signs 3w With Atex Exit Sign Light Aluminum 220VAC 100lm/w Explosion Proof Emergency Lamp Exit Signs 3w With Atex Exit Sign Light Aluminum 220VAC 100lm/w Explosion Proof Emergency Lamp Exit Signs 3w With Atex Exit Sign Light

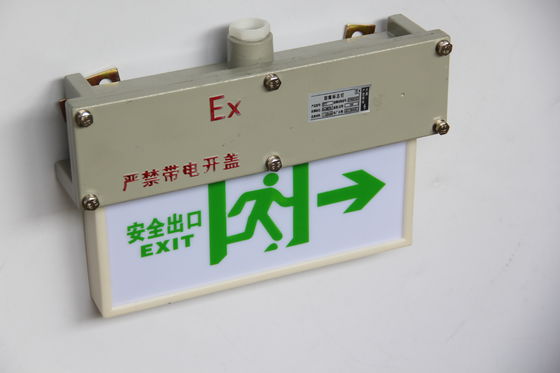

Большие изображения :  Aluminum 220VAC 100lm/w Explosion Proof Emergency Lamp Exit Signs 3w With Atex Exit Sign Light

Подробная информация о продукте:
Место происхождения: Цзянсу, Китай
Фирменное наименование: Crown Extra
Сертификация: ATEX,CE,ROHS,CNEX,ISO9001
Номер модели: Проникновенный
Оплата и доставка Условия:
Количество мин заказа: 1 шт
Цена: USD48-80 per pc
Время доставки: 15 рабочих дней
Условия оплаты: T/T.
Поставка способности: 50000pcs/месяц

Aluminum 220VAC 100lm/w Explosion Proof Emergency Lamp Exit Signs 3w With Atex Exit Sign Light

описание
Бренд: Корона дополнительно Название продукта: Знак выхода, защищенный от взрывов/ВЫ
Напряжение: 220VAC 24/36 В постоянного тока Эффективность: 100 фунтов/w
Крик: РА: ≥70 СКИт: 3000/4000/5000/5700K
Проверенный: CNEX, EX, IP66, IEC, IECEX Монтаж: Стена

Aluminum 220VAC 100lm/w explosion proof emergency lamp exit signs 3w with atex exit sign light



BYY Series

Aluminum 220VAC 100lm/w Explosion Proof Emergency Lamp Exit Signs 3w With Atex Exit Sign Light 0



Features:

1.Die-cast aluminium body with baked epoxy powder coat finish for durability and corrosion resistance
2. Toughened glass transparent cover with high light transmittance
3. Ultra-bright LED light source, service life is up to 50,000 hours
4. Designed with test buttons, convenient for regularly maintenance
5. The light fitting is designed with a main power indicator, failure and charging indicator, to the using status
6. Designed with test button




Applications


A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations




Standard Materials
Housing: Die-casting aluminum
Exterior: Stainless steel
Globe: Tempered glass
Gasket: Silicon rubber




Certifications
ATEX
CNEX
CE
RoHS
ISO9001



Electrical Data
Ex Marking Ex e IIC T6/ Ex tD A21 T80
Application Zone 1, 2 & Zone 21, 22
IP Degree IP65
Corrosion Resistant WF1
Wattage 1.5-3W
Entries G 3/4" Conduit Entry, Suitable for Φ10mm-Φ14mm cable
Input Voltage DC 110V;AC220V 50Hz
Red Lettering Optiional
Back-up Battery >120 min
Weight 3.25kg
Mounting Styles Pendant; Ceiling; wall

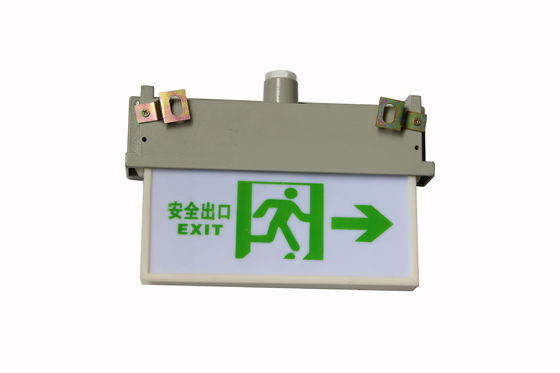

Aluminum 220VAC 100lm/w Explosion Proof Emergency Lamp Exit Signs 3w With Atex Exit Sign Light 1

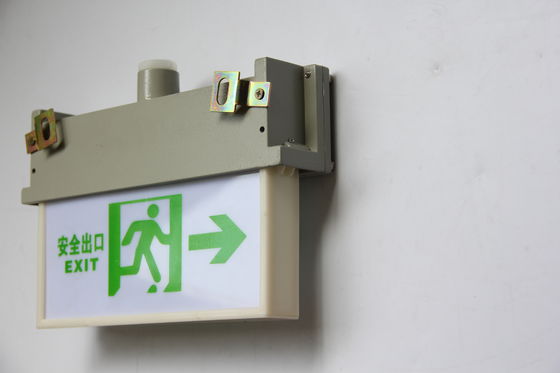

Aluminum 220VAC 100lm/w Explosion Proof Emergency Lamp Exit Signs 3w With Atex Exit Sign Light 2


Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.

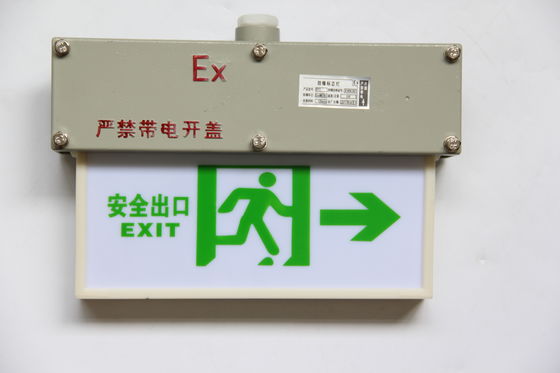

Aluminum 220VAC 100lm/w Explosion Proof Emergency Lamp Exit Signs 3w With Atex Exit Sign Light 3Aluminum 220VAC 100lm/w Explosion Proof Emergency Lamp Exit Signs 3w With Atex Exit Sign Light 4
